| Transmission Range | Over 100 km |
| Excellent Robustness | Non-Line of Sight (NLOS) |
| Easy to Integrate | Standard interfaces & Protocol |
| Many Frequency Bands | 70 MHz to 6 GHz |
Simpulse SL200 mobile data link modem is dedicated to mobile bi-directional transmission of data and video in challenging environments. The modem provides a best in class performance, robust and secure link with bitrate from 10 kbits/sec to 5 Mbits/sec for long range distance in Line-of-Sight (LOS) and Non-LOS conditions. Associated with Simpulse's GRS-T200 ground antenna, this proven solution is particularly dedicated to very long transmission range.
Simpulse SL200 mobile data link modem is dedicated to mobile bi-directional transmission of data and video in challenging environments. The modem provides a best in class performance, robust and secure link with bitrate from 10 kbits/sec to 5 Mbits/sec for long range distance in Line-of-Sight (LOS) and Non-LOS conditions. Associated with Simpulse's GRS-T200 ground antenna, this proven solution is particularly dedicated to very long transmission range.
The SL200 is built around robust software-defined radio (SDR) technology that offers high sensitivity and robust synchronization in mobile environments, even under low signal-to-noise conditions. Simpulse's advanced signal processing core manages Doppler effect, interferences and multipaths. Sophisticated measurements optimize the link in real conditions, a robust control link is maintained beyond the nominal distance range. SL200 thus provides excellent quality of service for any transmissions (LOS and non-LOS) to ensure high and stable throughput of live HD video and data, as well as telemetry and control command, in one single device.

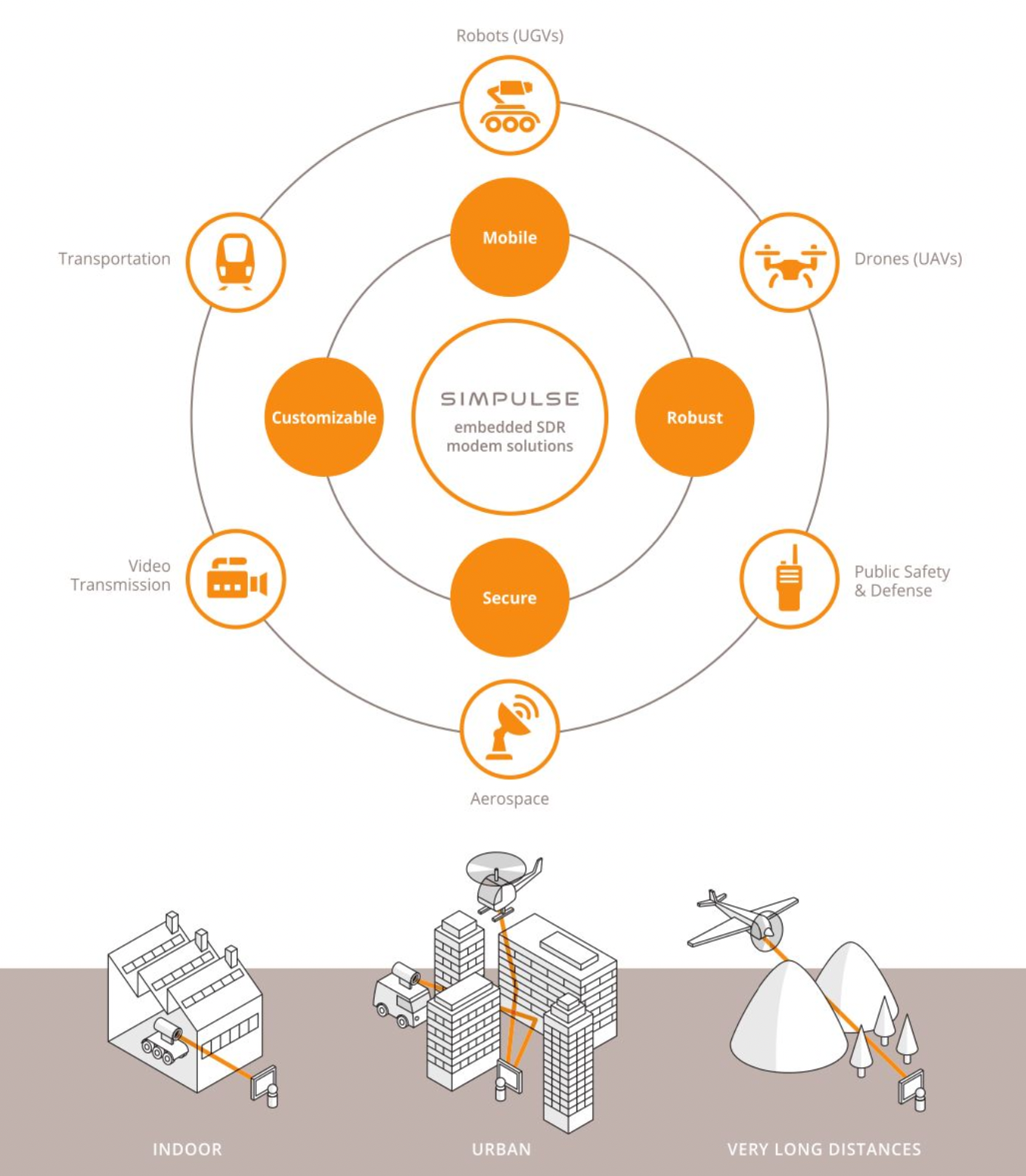

SL200 mobile data link modem is the ideal solution for Drones and Unmanned Aerial Vehicles (UAV), Robots and Unmanned Ground Vehicles (UGV), long-range wireless video and telemetry, critical and secure applications.

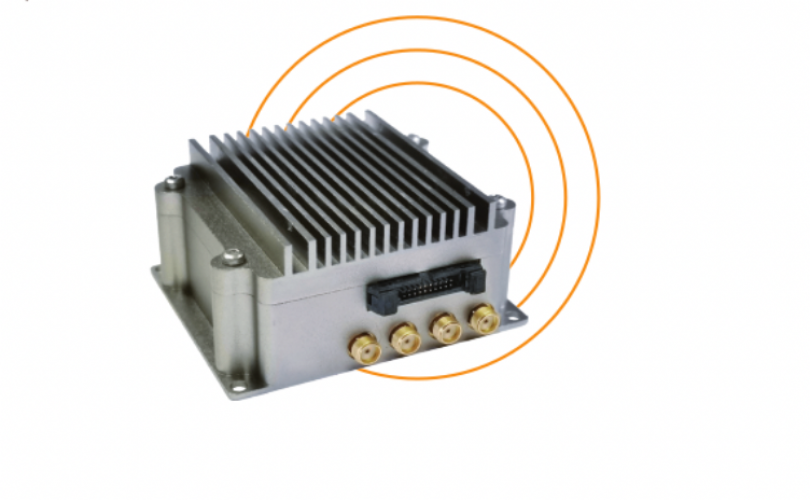

SL200 radio modem is delivered as a compact aluminium box or in OEM version. Software and Hardware adaptations can easily be made. Contact us to discuss your particular needs.
Simpulse
Hardware
SL200 Modem, GRS T200 Tracking Antenna, RSF 200 Ground Antenna
Construction & Real Estate, Drone Delivery, Power & Utilities, Forestry & Agriculture, Surveillance & Mapping, Aerial Photography, Mining & Exploration, Security & Law Enforcement, Environment & Wildlife, Disaster Management / First Responders, Infrastructure & Transport
France
Stéphane De Marchi and Emmanuel Hamman, founders of Simpulse, first gained extensive experience in the companies SAFRAN then DIBCOM, reputed to be at the leading-edge of digital wireless transmission technologies. SL200, Simpulse's flagship product, is already deployed today in many long-range and highly mobile data and video applications, and in a wide variety of dedicated radio links.
