DJI Dock

0 reviews

Key Features

DJI Dock Reliable and Designed to operate 24/7
Backup Battery 5 Hours
DJI FlightHub 2 Schedule Flight Missions And Manage Collected Data
Operational Range 7 km Operation Radius
Fast Charging 25 mins. Fast charging for Minimum Downtime

Short Description

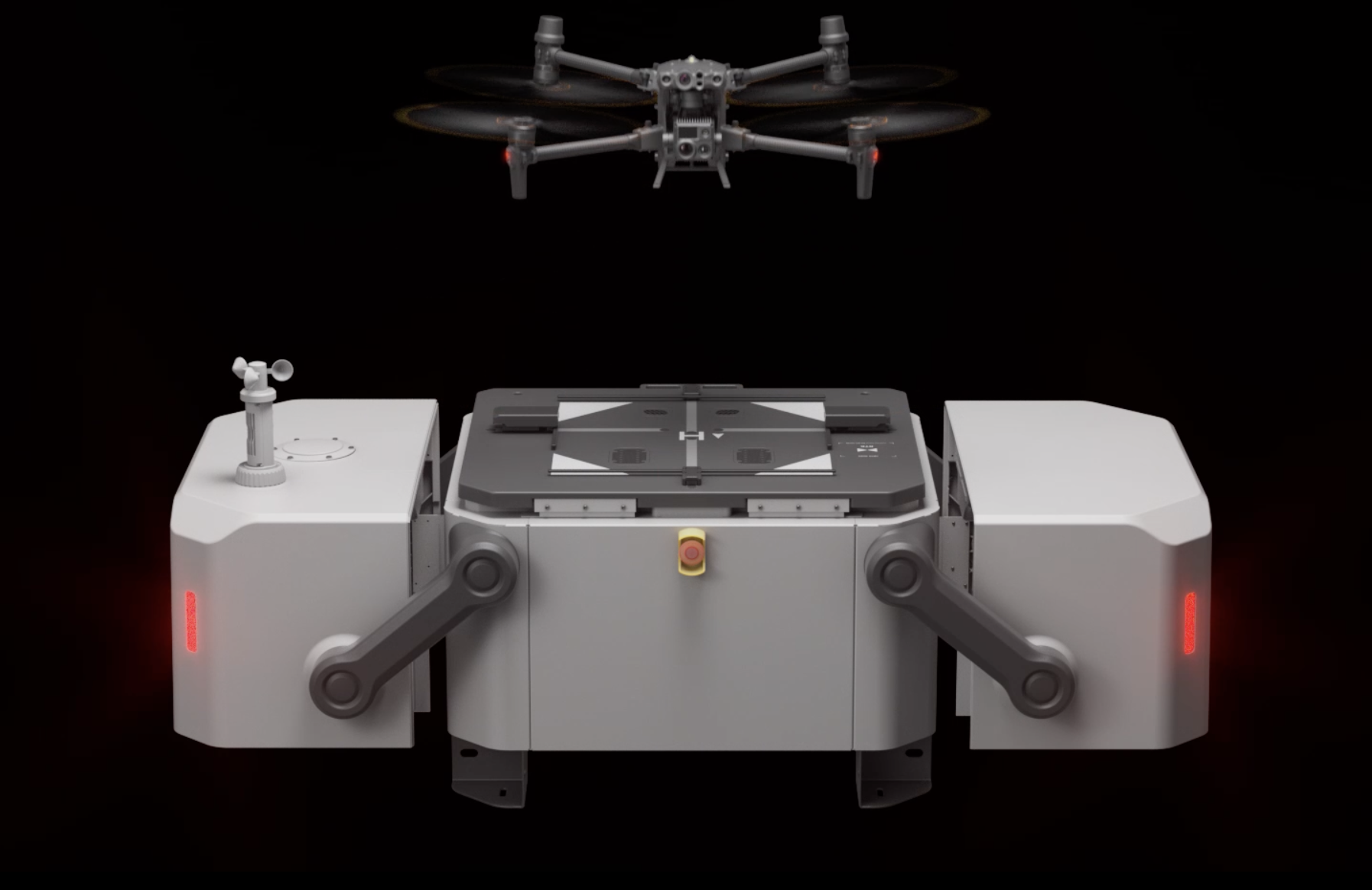

DJI Dock is rugged, reliable and designed to operate 24/7, day or night, in any weather. Each DJI Dock accommodates a Matrice 30 for landing, recharging, takeoff and performing missions programmed in DJI FlightHub 2.

Description

About DJI

Creativity is at the heart of all dreams. Any idea or revolutionary advance is born from the vision of creators and creators with a thousand talents. At DJI, we give these creators the tools they need to bring their ideas to life.
Our platforms allow them to capture images that were previously impossible to capture. Our flying camera stabilization systems redefine camera movement and positioning. Every day, in every corner of the planet, exceptional photos and videos, treasured personal memories, and high-end professional images are created using DJI products.DJI technology goes beyond simply providing tools to creators. We push visionaries to push beyond the limits of what they thought possible. We inspire them to inspire the world.We do this by involving ourselves unparalleled in research and development. We constantly cultivate innovation and curiosity. We strive to transform complex technologies into easy-to-access devices. Following the principle that "function defines form", our products combine advanced technology with dynamic design.Based in Shenzhen, considered China's Silicon Valley, DJI benefits from direct access to its suppliers, raw materials and a pool of young creative talent, essential conditions for establishing lasting success. We make the most of these resources and have grown from a single office in 2006 to a global workforce of over 6,000 people. Our offices are located in the United States, Germany, the Netherlands, Japan, Beijing and Hong Kong. A private company, DJI focuses on its own vision and supports charitable, commercial and creative applications resulting from its technologies.Today, DJI products are redefining industries. Film professionals, farmers, heritage managers, rescuers and companies in the energy infrastructure sectors trust DJI to bring them new work perspectives and help them gain in efficiency, speed and safety, such as never before.

DJI Dock is rugged, reliable and designed to operate 24/7, day or night, in any weather. Each DJI Dock accommodates a Matrice 30 for landing, recharging, takeoff and performing missions programmed in DJI FlightHub 2.

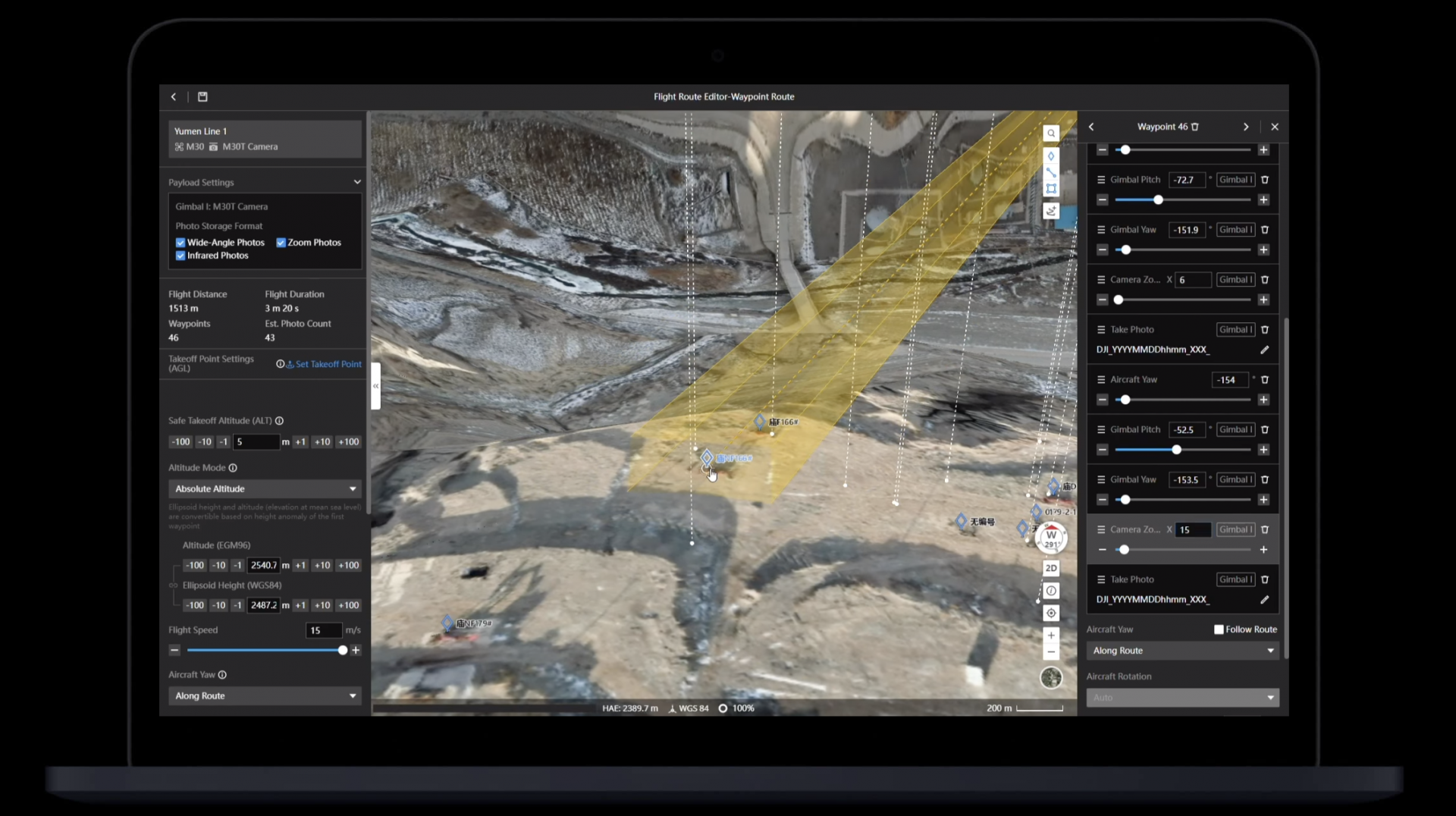

Full cloud control

With DJI FlightHub 2, unlock all DJI Dock features from the cloud. Schedule missions, create and edit flight paths, and manage collected data.

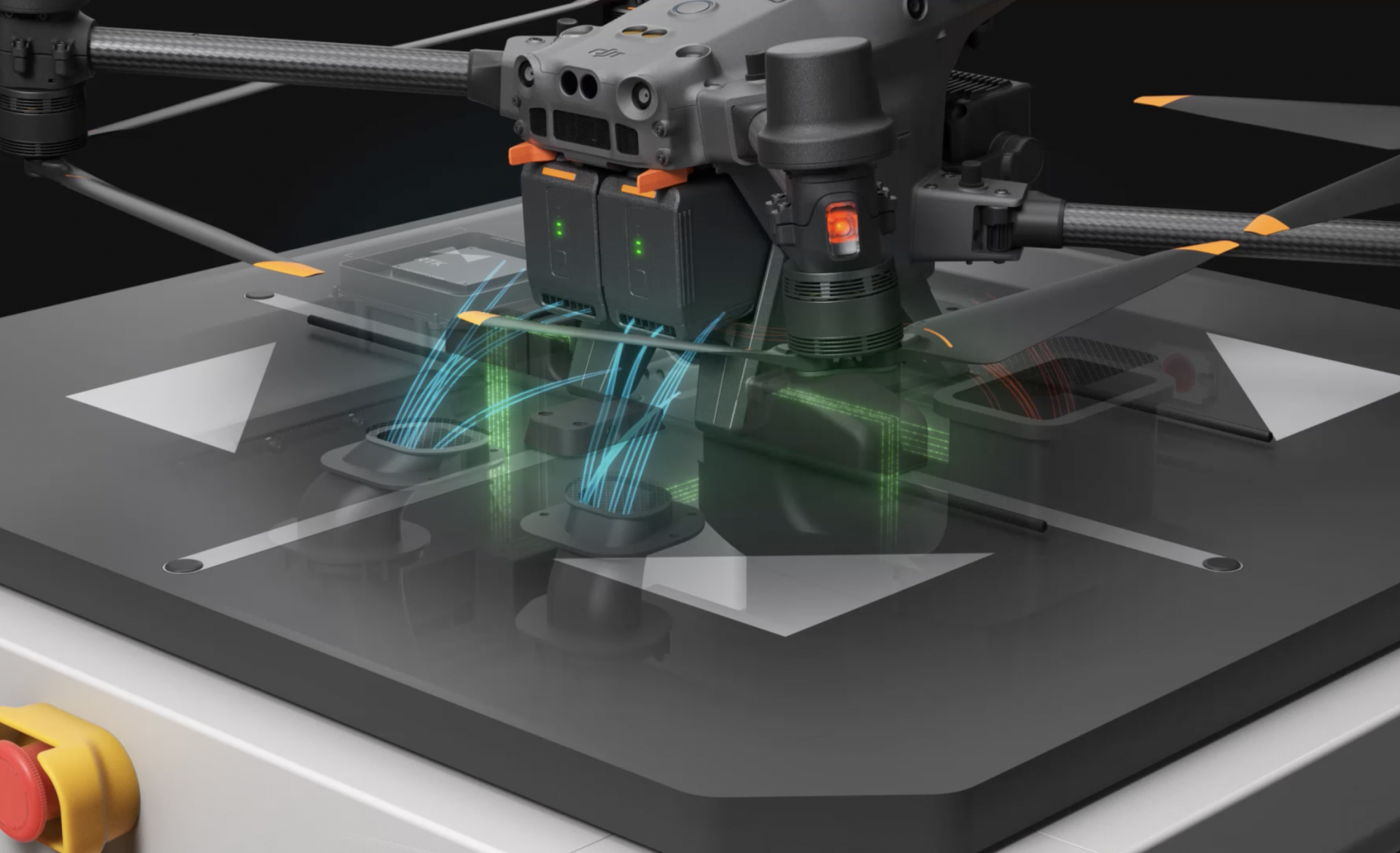

Fast charging for efficient operations

Recharge and take off quickly with TEC air conditioning that cools the drone's batteries and enables a 10-90% recharge in just 25 minutes. 2

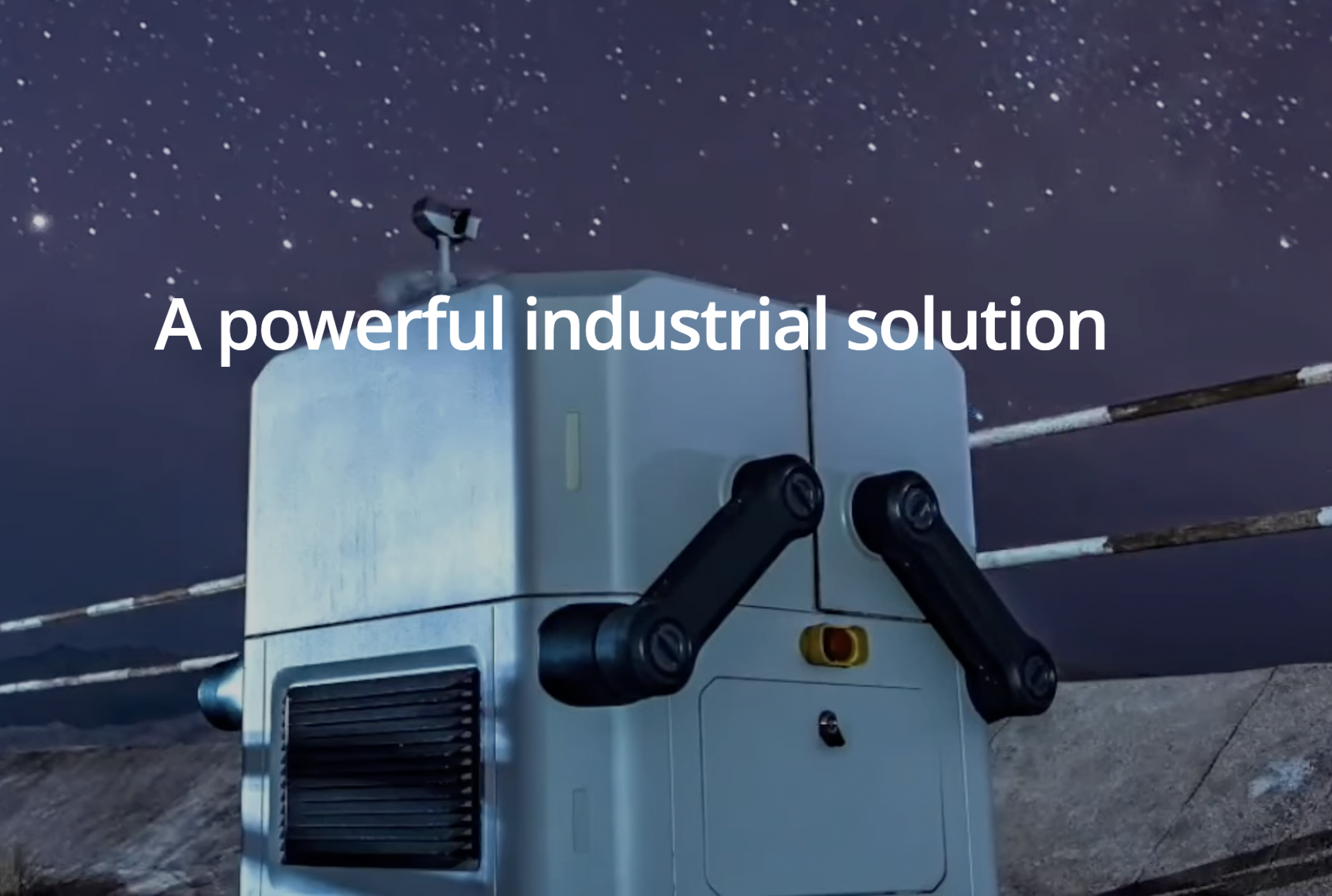

Day or night, in all weathers

DJI Dock was designed to withstand the elements for you.

Matrice 30 range Dock version

Continuous operations

The Dock version of the M30 range offers class-leading performance with maximum wind resistance of 15 m/s 8 and an IP55 rating.

Wide coverage

With a full charge, the M30 Series flies for 40 minutes 9 and performs missions and inspections up to 7 km away from DJI Dock.

Target details at your fingertips

The M30 Dock version range has wide-angle, zoom and thermal cameras (M30 only) as well as a laser rangefinder, allowing you to capture all the aerial data you need, when you need it.

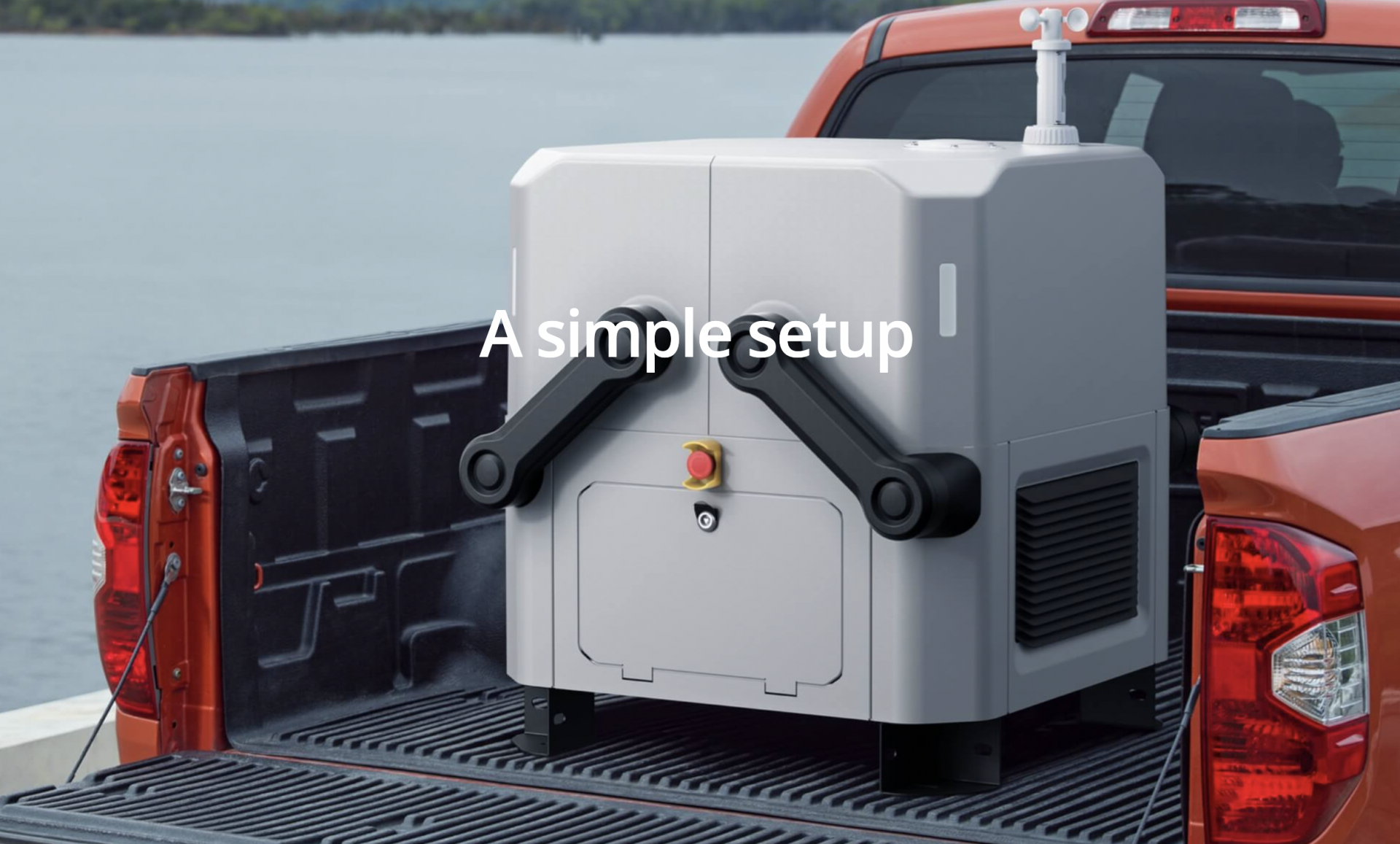

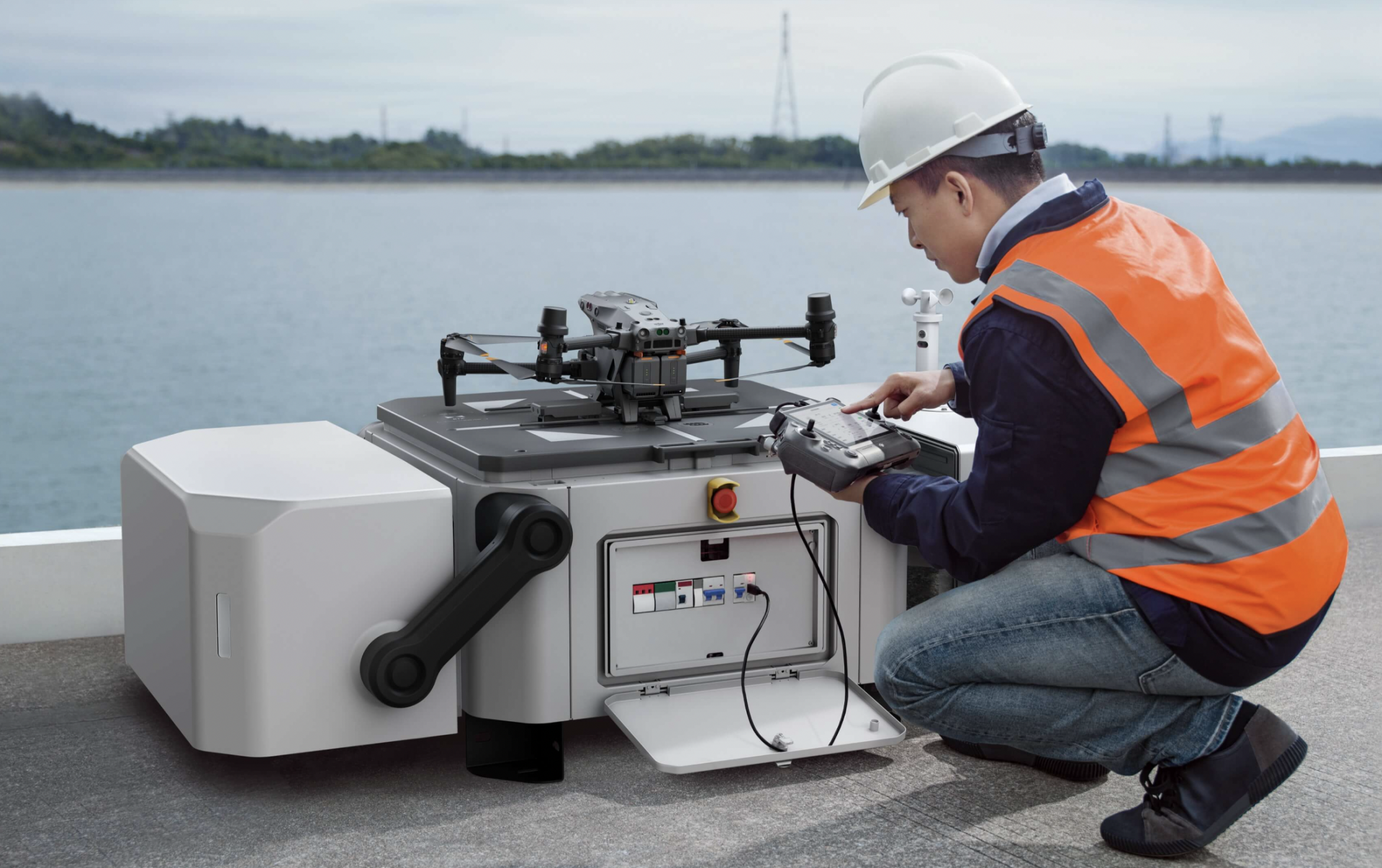

A DJI Dock weighs less than 105 kg and has a footprint of < 1 square meter. Installation requires only fixing to the ground, access to power and internet, and quick setup via the DJI RC Plus remote controller.

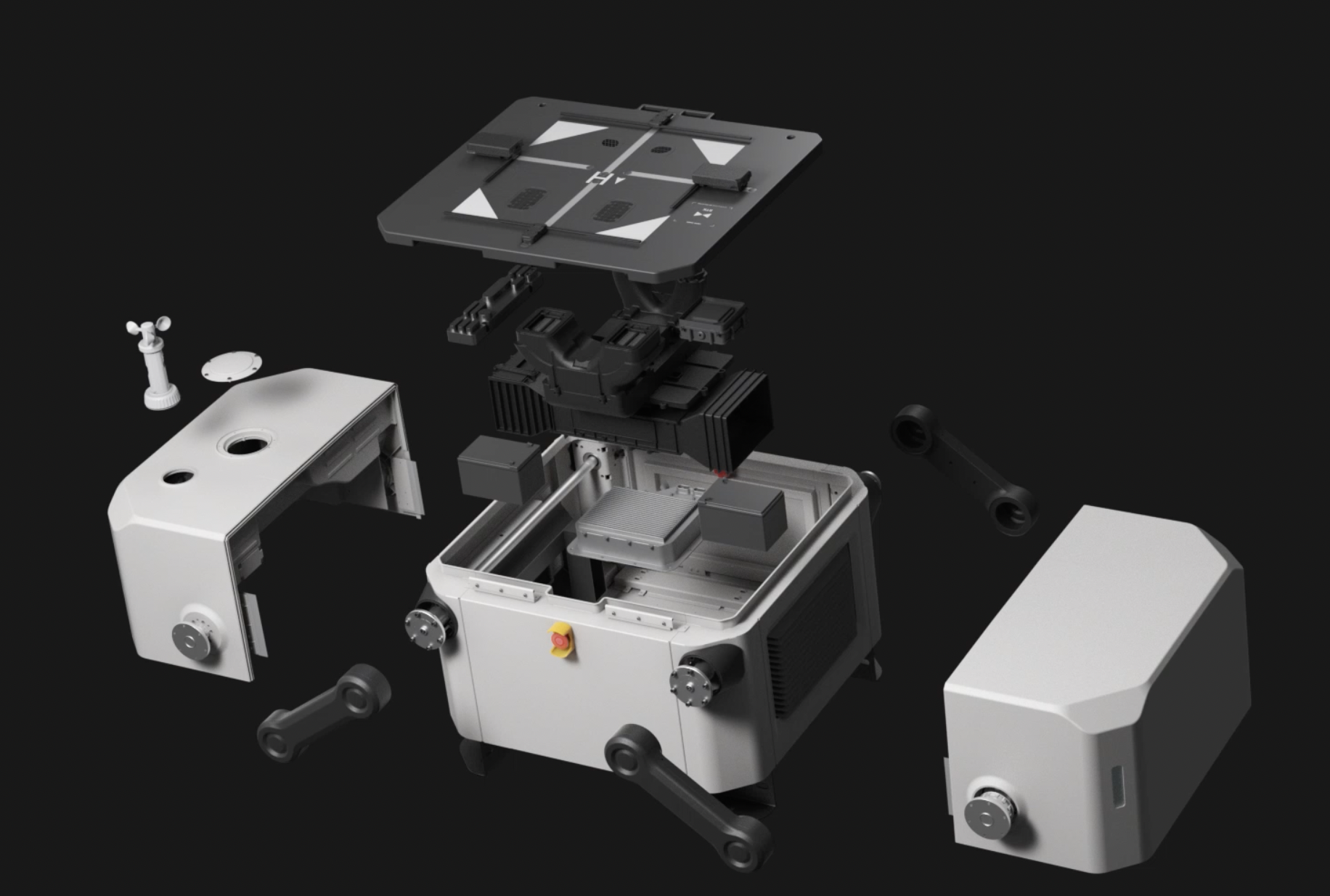

Integrated design

DJI Dock is equipped with highly integrated hardware, which enhances functionality.

Wide-angle security cameraBuilt-in weather station

LTE 10 network card slot

Internal omnidirectional antenna

RTK module

Edge computing expansion slot









Specifications

  • Manufacturers
  • DJI
  • DJI
  • China
  • Construction & Real Estate, Infrastructure & Transport, Mining & Exploration, Others, Power & Utilities, Security & Law Enforcement, Surveillance & Mapping
  • Air
  • Autonomous, Beyond Visual Line of Sight (BVLOS), Extended Visual Line of Sight (EVLOS), Line of Sight (LOS), RPAS
  • Autonomous, Rotary Drones, VTOL
  • IP55
  • 0 to 30 mins, 30 to 60 mins
  • Battery
  • 105
  • Dock cover open: 1675 x 885 x 735 mm (L x W x H) Dock cover closed: 800 x 885 x 1065 mm (L x W x H)
  • IP55
  • 100-240VAC, 50/60Hz
  • 1500W
  • -35 to 50°C (-31 to 122°F)
  • 1
  • 12 m/s
  • 4000 m
  • 7000 m
  • BeiDou, Galileo, GLONASS, GPS
  • Horizontal: 1 cm+1 ppm (RMS) Vertical: 2 cm+1 ppm (RMS)
  • 18 to 26.1V
  • 25 minutes
  • O3 Enterprise
  • 2.4000 to 2.4835 GHz 5.725 to 5.850 GHz
  • 4 antennas, 2T4R
  • 2.4GHz: &lt;33dBm (FCC); &lt;20dBm (CE/SRRC/MIC) 5.8GHz : &lt;33dBm (FCC); &lt;14dBm (CE); &lt;23dBm (SRRC)
  • 48 V DC
  • TEC air conditioning
  • 12 Ah
  • 24 V
  • Lead Acid Battery
  • > 5 hours
  • 10/100/1000 Mbps adaptive Ethernet port
  • Ambient Temperature Sensor, Cabin Temperature Sensor, Humidity Sensor In The Cabin, Rain Sensor, Vibration Sensor, Water Immersion Sensor, Wind Speed Sensor
  • 1920x1080
  • 180°
  • Supported, White Auxiliary Light
  • 40 kA (8/20μs wave), in accordance with EN/IEC 61643-11 TYPE 2 protection level requirements
  • 1.5 kA (8/20μs wave), in accordance with EN/IEC 61643-21 CATEGORY C protection level requirements
  • DJI Pilot 2 (connection to DJI Dock via DJI RC Plus remote controller for setup and commissioning)
  • DJI FlightHub 2 Third-Party Platforms via DJI Cloud API
  • DJI Cloud APIs
  • DJI Dock provides internal power, data interface and space for hardware installation. Edge Computing will be supported in Q2 2023.
